Optical Test Equipments
OSA

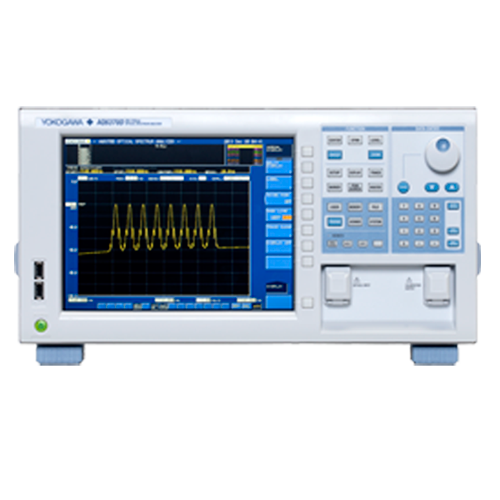

Buy Optical Spectrum Analyzer (OSA) in Dubai UAE | Best Price
An Optical Spectrum Analyzer (OSA) is a precision instrument used for the measurement and analysis of optical spectra. It helps plot the graph of power versus wavelength, providing a clear view of signal characteristics. An OSA is also essential for determining the signal-to-noise ratio in optical systems, making it a critical tool for laboratories, research, and telecom applications.
If you are looking for the right optical spectrum analyzer in Dubai UAE or want guidance on selecting the suitable model for your application, our team can assist you with detailed specifications, support, and the best optical spectrum analyzer in Dubai UAE pricing.
Frequently Asked Questions
An OSA is a precision test instrument that measures and displays the optical power of light signals
across different wavelengths.
It shows the spectrum of your optical source — helping you analyze how light behaves in your fiber
network, laser, or DWDM system.
You need an OSA to:
- Check laser wavelength accuracy and stability
- Measure optical power levels across channels
- Analyze DWDM/CWDM channel spacing and performance
- Detect unwanted signals or noise
A Power Meter measures total power at a single wavelength.
An OSA measures power at every wavelength, showing the full spectrum.
If you’re testing multiple wavelengths or channels, the OSA gives the complete picture.
You’ll find OSAs used in:
- DWDM/CWDM networks
- Laser source and amplifier testing (EDFA, DFB, etc.)
- Optical component R&D
- Telecom, datacenter, and 5G labs
- Quality control in fiber equipment manufacturing
An OSA splits incoming light into its component wavelengths and measures the optical power at each
wavelength.
The result is a graph of wavelength vs. power, called a spectrum trace — helping you visually identify
peaks, sidebands, and unwanted signals.
Modern OSAs are designed to be user-friendly.
They offer auto-scan, touchscreen interfaces, and preset test modes, allowing engineers or technicians
to get accurate results with minimal setup.
Here’s what to look for:
- Wavelength range (e.g., 1250–1650 nm)
- Resolution bandwidth (RBW) – defines how detailed the measurement is
- Dynamic range – the level difference it can accurately display
- Wavelength accuracy and stability
- Sweep speed and noise floor
Yes — that’s one of its main strengths.
An OSA can display all DWDM or CWDM channels simultaneously, showing power and wavelength for each.
You can easily verify if all channels are within the ITU grid and have correct spacing.
For basic fiber installation or splicing, an OTDR and power meter are usually enough.
However, if you’re analyzing optical transmitters, OLTs/ONUs, or signal multiplexing, an OSA helps
verify signal health and channel overlap.
- Lab OSAs: Higher precision, better resolution, usually benchtop type.
- Field OSAs: Portable, rugged, slightly lower resolution but ideal for on-site network verification.
- Empirical Testing Solutions offers both — depending on whether your focus is R&D or field testing.
- Optical connectors/adapters (FC, SC, LC)
- Optical attenuators (for high power lasers)
- Calibration certificate for traceable accuracy
- Report generation software for result documentation
If you mainly test DWDM/CWDM networks, choose an OSA with:
- Wide wavelength range (1260–1640 nm)
- Narrow RBW (≤0.05 nm)
- For laser or source testing, focus on high wavelength accuracy and dynamic range.
Yes — we provide:
- ✅ Certified calibration for accuracy and compliance
- ✅ Local support and repair in the Gulf region
- ✅ Hands-on training and setup assistance for your engineers
- ✔ We supply trusted, tested OSA brands
- ✔ Local demo, service, and support available
- ✔ Calibration, training, and certification included
- ✔ Competitive pricing for telecom, datacenter, and R&D customers
