What makes Insulation Testing such a crucial part of an electrical setup?

What makes Insulation Testing such a crucial part of an electrical setup?



Electrical setups need careful management to avoid any hazardous incident. Insulation is a term that is highly common with electrical setups. Insulating a setup means creating fillers for the spaces in a setup where the current can easily leak. Especially with the bends and crevices, it is highly essential to insulate to stop unwanted electrical flow. But how do you ensure if the insulation is apt for the setup in concern? The testing mechanisms are the prime ways to understand the condition.



Understanding the basics



Before getting to the insulation testing process, first, understand what insulation resistance is. It is the resistance generated from the insulated part of the conductor, carrying electrical current. This resistance of the conducting cable on the leakage current path is insulation resistance. It is significant for guarding against electric shocks and prevents damage in the long run. The distinct insulation resistance values indicate whether the insulation level is good or bad.



Why so necessary?



  • Not only to ensure that the electric setup is safe, but insulation testing also helps in figuring out where the electrical signal is getting lost in the way. In complex and long-extended electrical lines and setups, the testing indicates if there is a leakage. This leakage is not only a hampering factor to the setup but also harmful for safety purposes. Insulation testing works wonderfully in preventing injury possibilities and physical damage in the setup.



  • Another reason that makes insulation testing a must for practical requirements is for ensuring reliability. With the testing outing, you understand if the concerned electrical equipment or setup has a proper connection all through. In a broader perspective, insulation testing often leads to identifying the service life of electrical equipment. An unsatisfactory outcome with the testing mechanisms indicates a shorter service life of the instrument or poor functioning ability of a setup.



Problems that can arise



In case of an inconsistency in the insulation set up, there are major possibilities of damage. The whole electrical system can crash due to a sudden spike in voltage. Accidental chances grow largely for insulation failure. Fire breakage, electric shocks, injuries, halt in operation, and so much more can result from a bad insulation setting.



Reasons for bad insulation



Why does the insulation go from good to bad? The reasons are more than one and of varied types. Primarily, environmental conditions and physical impacts make it worse. Vibration, corrosion, temperature fluctuation, and other practical factors are common reasons to spot. Mechanical stress caused by a short circuit current is another reason why a good setup can turn bad. Thermal expansion and contraction of conductors also lead to insulation degradation. Testing the parts leads to the identification of the worsened conditions.



The total current in insulation testing



Testing of insulation resistance determines the resistance value to that of the current flow across it. A high resistance indicates a low current escape. In contrast, if the measured value is low, the leakage is high. Testing the insulation happens by pressurizing the conductor with a predetermined voltage and segmenting it by the current, escaping the insulation. Capacitive current, absorption current, and leakage current are the three factors impacting the internal current flow through insulation.



Before you test



Before you go ahead with the insulation testing process, certain things need prior attention. You require to check a few conditions through visual inspection. Firstly, the machine you are about to use should have the right functional capacity to measure the resistance. The potential varies and may not be suitable for every purpose. Thus, check the specifications and operability of the tester.



  • Check for dust and moisture to remove it from the component.
  • Isolate the part from the whole setup or disconnect it.
  • Look for physical deformities in the setup to avoid accidents.



A brief about the process



The tester through which you evaluate the insulation needs a linkage between the conductor and the ground. The earthing factor is crucial for leakage. Select the right testing voltage and the duration. Decide it before as the values may differ based on these factors. Before you disconnect the testing nodes, discharge the compound through the ground. However, even after maintaining all these, the result can vary for the presence of humidity, heat, or dirt.



Types of insulation testing



Insulation testing is not of a singular kind. Proof testing, time resistance evaluation, and step voltage test are the three common methods in use. In each testing type, the equipment varies with the functioning potential.



  • Proof testing is effective for a new setup, as the name suggests. It indicates the setup errors and incorrect installation cases.
  • In the time resistance process, the testing happens for a fixed period. The variables that fluctuate during the testing period, as a whole, determines the insulation conditions.
  • Step voltage test involves testing with two or more voltages, and the final result you get is through a thorough comparison.



Select the right

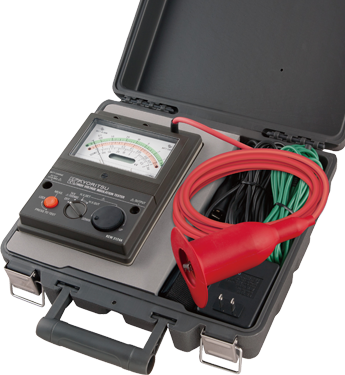

The whole testing only leads to a successful outcome if the tester and other factors are apt for the purpose. Thus, you have to be careful with each step, starting from buying the right tester for insulation evaluation.
